Brett Martin Flat Glass Rooflight Manual Hinge & Winding Rod to suit a Builders Kerb

SKU: MDGTMHBK1
Regular price £692.58 inc. VAT (£577.15 EXC. VAT )

The Brett Martin Flat Glass rooflight is a sleek and cost effective option when looking to install a manually hinged glass rooflight to an existing builders kerb.  Fully manufactured in the UK this quality glass rooflight is available in as little 5 days.

Simple to install whilst still offering an elegant look this rooflight is sure to impress both the homeowner and installer.

This unit opens via a manual worm gear mechanism and comes complete with a 1m operating rod.

All Brett Martin rooflights are manufactured to order and therefore cannot be returned. Please ensure the size and spec is correct before submitting your order

Brett Martin Glass Fixed Manual Hinged rooflight to suit a builders timber kerb. Beautifully designed contemporary double glazed laminated glass rooflight combines minimal framework with the benefit of being able to open for ventilation.

  • Manually hinged fitting to builders timber kerb
  • Fully sealed laminated double glazed unit
  • Aluminium frame powder coated RAL 7016 Grey or RAL 9005 Black
  • Operating rod included with every order

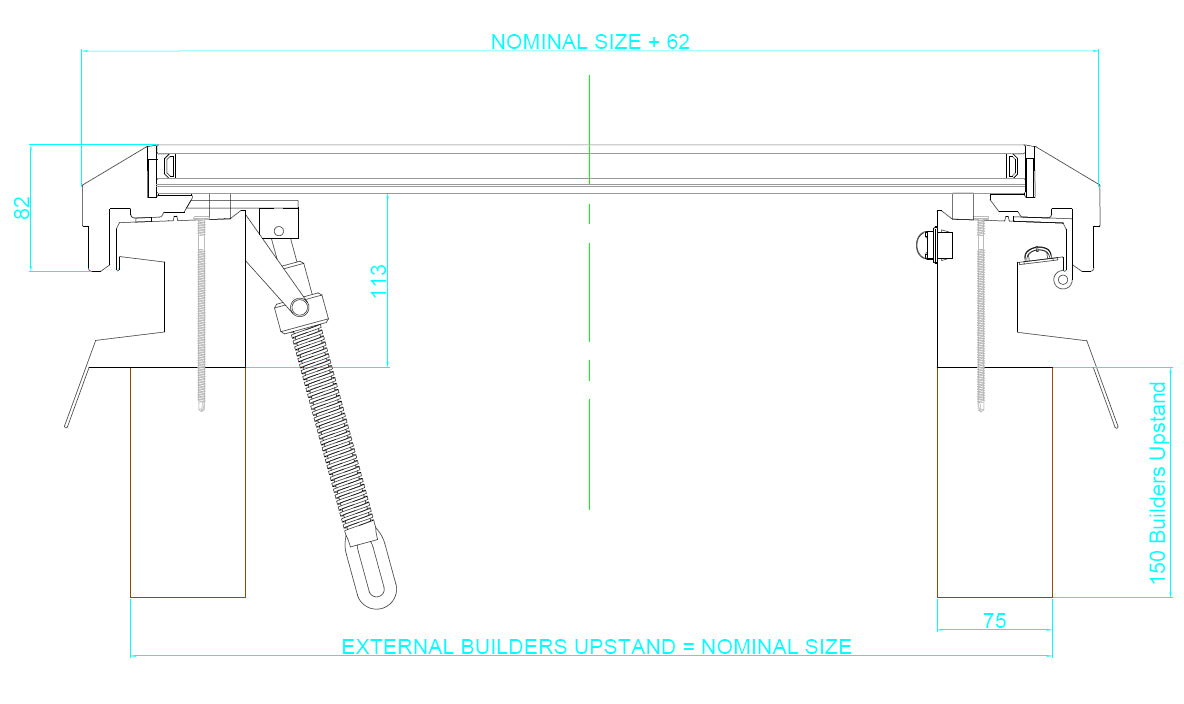

The above unit is supplied with a 100mm white PVC DF kerb to allow the unit to fit directly to a recommended 75mm wide builders kerb. The sizes above are external weathered kerb sizes, clearlight size will be less 150mm.

Delivery to mainland UK only in approximately 5 working days

Off-loading is the responsibility of the buyer.

The Brett Martin flat glass rooflight is designed to suit a builders kerb, the critical dimension is the overall weathered kerb size.  If your external kerb measures 600mm x 600mm then you will order the corresponding 600mm x 600mm unit.

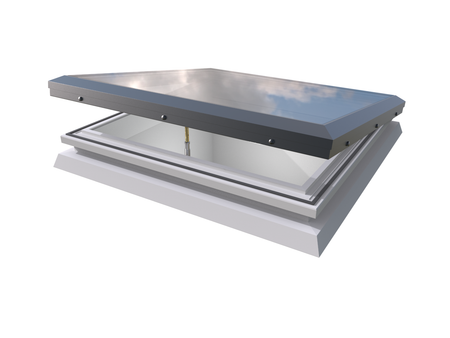

Product Image

Glass spec:
Laminated double glazed unit comprising - 6mm toughened outer, 90% Argon filled cavity, 7.5mm laminated soft coat Low E inner with 1.5mm PVB interlayer

  • Centre pane U value of 1.1W/m²K
  • 100mm high PVC DF kerb supplied to fit to existing timber kerb
  • Glass specification is non fragile to CWCT TN67 Class 1 for overhead glass
  • Acoustic noise reduction of 39 dB
  • Highly secure with P4A class resistance to burglary and vandalism (P4A to EN356)
  • Suitable for mounting at pitches of 2–15°
  • Supplied with all fixings required
  • Hinged on the long side
  • Hinges to be placed at highest point

For datasheet please click here

For installation details be please click here

For internal plasterboard finishes please click here

This product comes with a 10 year warranty on the unit & a 5 year warranty on the double glazed unit.
