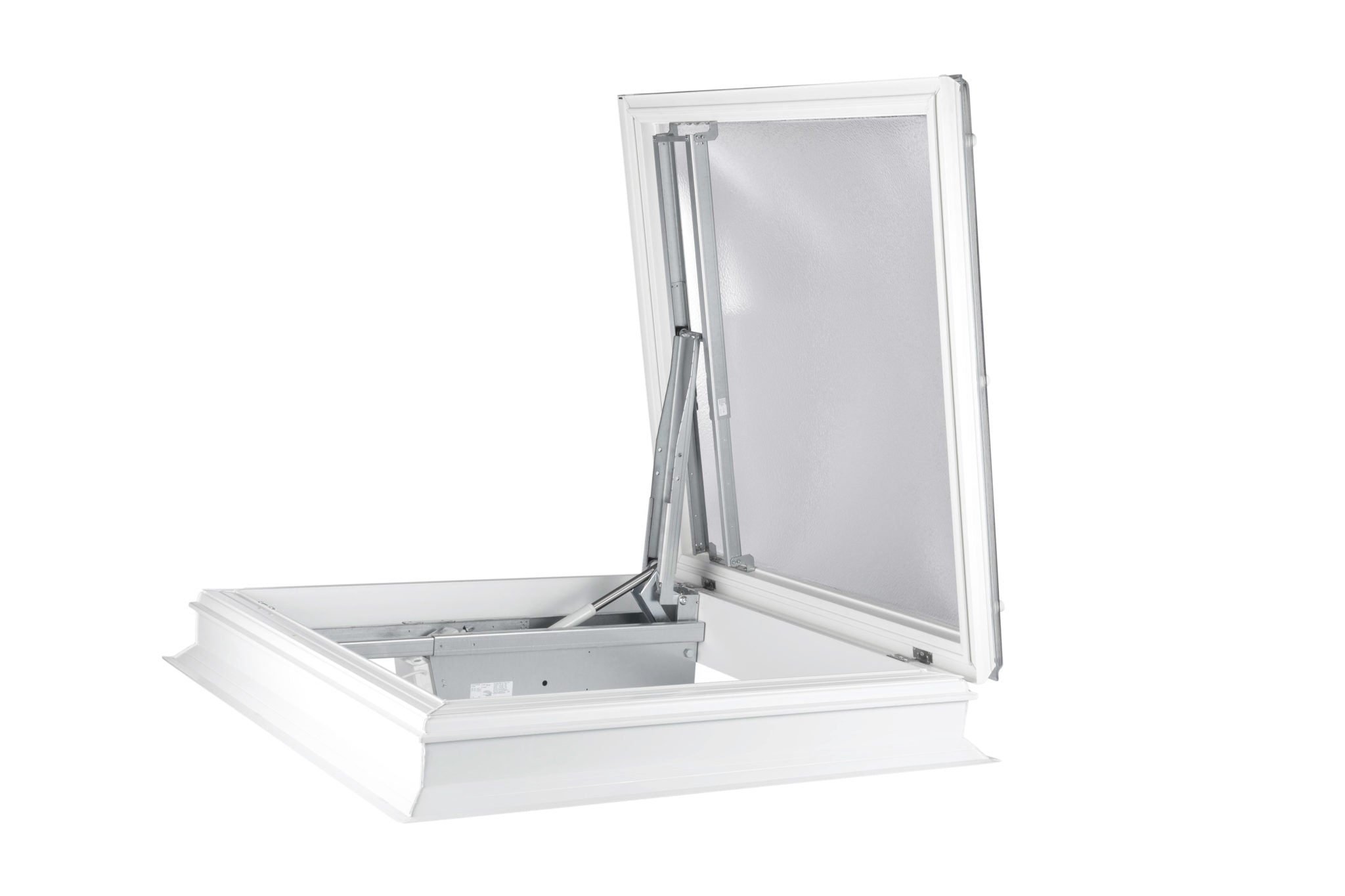

Coxdome AOV Smoke Vent with 160mm high Vertical PVC Kerb

Regular price £1,460.70 inc. VAT (£1,217.25 EXC. VAT )
Regular price £1,832.09 Sale price £1,460.70 inc. VAT (£1,217.25 EXC. VAT )
Free delivery Delivery information

Coxdome Smoke Vent (AOV) systems provide a smoke and heat exhaust ventilation solution for all commercial and residential applications.

Linked to a central control panel, complete with battery backup in case of mains failure, the control panel can be triggered from either manual override switches local to the ventilator and the ground
floor by dedicated smoke detectors, or by interfacing with a third party smoke detection/fire alarm system.

Supplied with a centrally mounted motor unless otherwise specified.

  • Fully certified to EN12101-2.
  • 160mm PVC kerb for installation to a builders kerb
  • All sizes shown stock for fast delivery

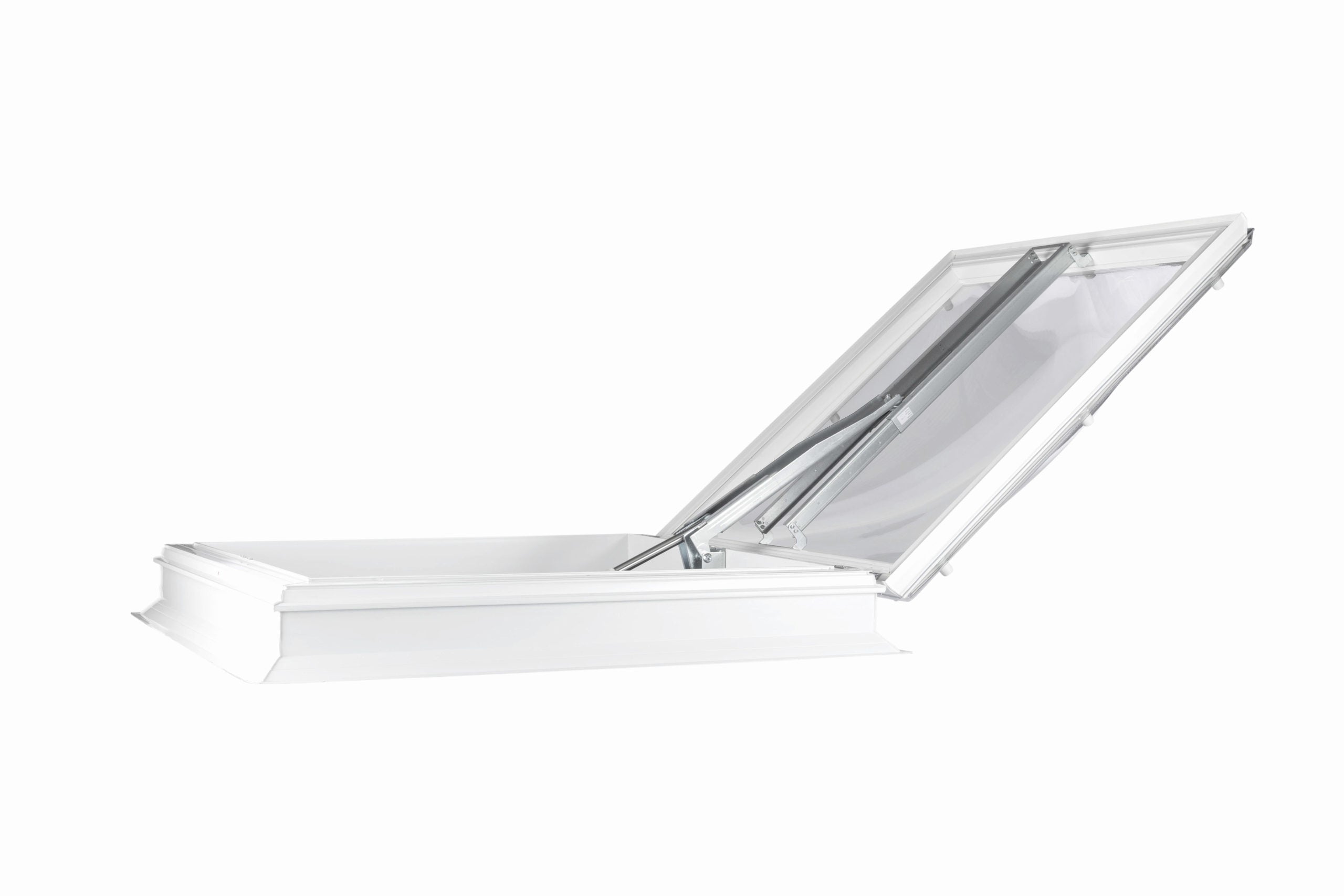

  • Opening to 140° the system offers maximum ventilation

Related Categories:

Delivery will be approximately 5 - 7 working days

  • New Orders: Effective today (3rd March 2026), standard COXDOME AOVs will carry a 7–10 working day lead time for this week only. We expect to return to our standard 5–7 working day lead time starting next week.
Product Image

For data sheet please click here

For motor offset info please click here

  • EN12101-2 certified
  • Non-Stock sizes available from 700mm to 1200mm and 700mm to 2200 mm
  • Opens to 140º
  • Galvanised steel mechanism
  • Glazed polycarbonate or solid aluminium cover
  • Extremely low noise level
  • Compact 24V motor unit
  • Aerodynamic free area up to Aa0.68m2
  • Snow load up to 600N/m²
  • Wind load up to 1500N/m²
  • Low ambient temperature T(-15°)
  • Heat exposure B300
  • Reaction to Fire Class E
  • Opening speed <60 secs
  • 5amp control panel operates 1 AOV unit. 8amp Control panel can operate 2 AOV units.
