Mardome Trade Smoke Vent to suit Builders Kerb

SKU: MDTAOVBK13
£1,476.21 inc. VAT (£1,230.18 EXC. VAT )

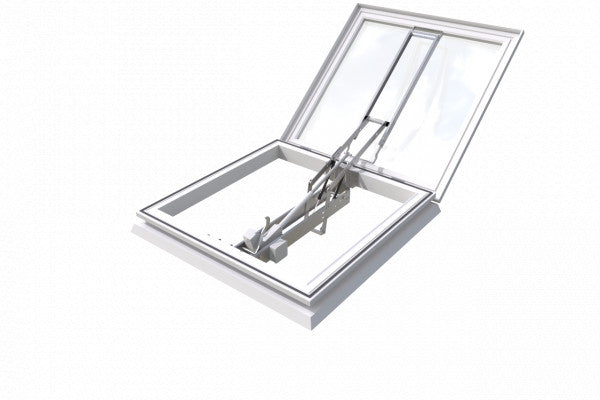

Polycarbonate Automatic Opening Vent rooflight for smoke ventilation
  • Available in a wide variety of sizes Standard sizes for fast leadtime
  • 100mm high PVC DF Kerb for fitting to a builders timber ker
  • Fully certified in accordance to BS EN 12101-
  • Optional wind deflectors available for improved aerodynamic performance

Delivery to mainland UK only in approximately 7-10 working days

- Fire rating - achieves Class B-s1, d0 to BS EN 13501:Part 1 and deemed BROOF(t4) to BS EN 13501: Part 5 by Building Regulation

- Inclusive of wind deflectors where applicable to comply with regulations

- Complete with a Part L compliant polycarbonate triple skin for a high thermal performance & resistance to condensation

- Class B non fragility to ACR[M]001

- The polycarbonate skin lid with an impact resistance to EN1873 1200 joules and Class B non-fragility in accordance with ACR[M]001

- Opens to 140° in less than 60 seconds complying  the requirements of the new Smoke Vent Standard BS EN12101-2

- Fire switch maximum of 8 per control panel

- Firemans priority switch maximum of 1 per control panel

- Smoke detector maximum of 22 per control panel

- 5amp control panel can power one smoke vent unit

- 8amp control panel can power up to two smoke vent units

- 8amp control panel will be require for the 1350mm x 1350mm unit and the 1500mm x 1500mm unit

- Please note offset motor position not available with wind deflectors
